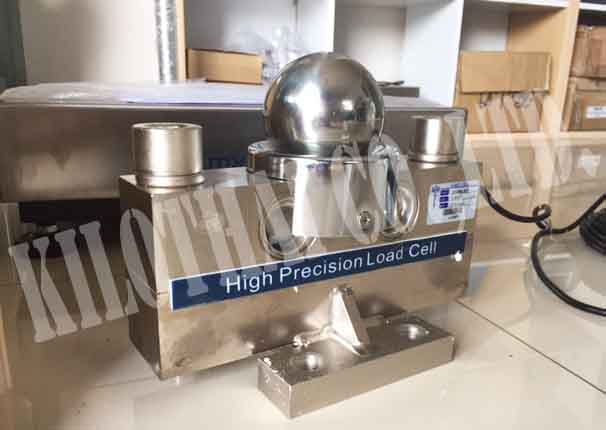

IDS606 ;High Precision Load Cell
โหลดเซลรถบรรทุกที่สามารถเทียบใช้แทนได้ทุกยี่ห้อ
LoadCell 30T 40T(IDS-606) Features
|
Specifications |
|||
|
Accuracy class |
|
C3 |
|
|
Output sensitivity ( = FS ) |
mV/V |
2.0 ± 0.002 |
|
|
Maximum capacity ( Emax ) |
t |
10, 20, 25 |
30, 40LE, 40, 50 |
|
Maximum number of load cell intervals ( nLC ) |
|
3000 |
|
|
|
|||
|
Combined error |
Vmin |
Emaxx/7500 |
|
|
Creep |
%F.S |
<±0.020 |
|
|
Safe overload |
of Emax |
120 % |
|
|
Coner correction |
%F.S |
150 % |
|
|
Zero balance |
%FS |
±1.5 |
|
|
Excitation, recommended voltage |
V |
5 ~ 12( DC ) |
|
|
Excitation maximum |
V |
18( DC ) |
|
|
Input resistance |
Ω |
700 ± 7 |
|
|
Output resistance |
Ω |
700 ± 7 |
|
|
Insulation resistance |
MΩ |
≥ 5000 ( 50VDC ) |
|
|
Compensated temperature |
℃ |
-10 ~ +40 |
|
|
Operating temperature |
℃ |
-35 ~ +65 |
|
|
Storage temperature |
℃ |
-40 ~ +70 |
|
|
Element material |
|
Nickel plated alloy steel |
|

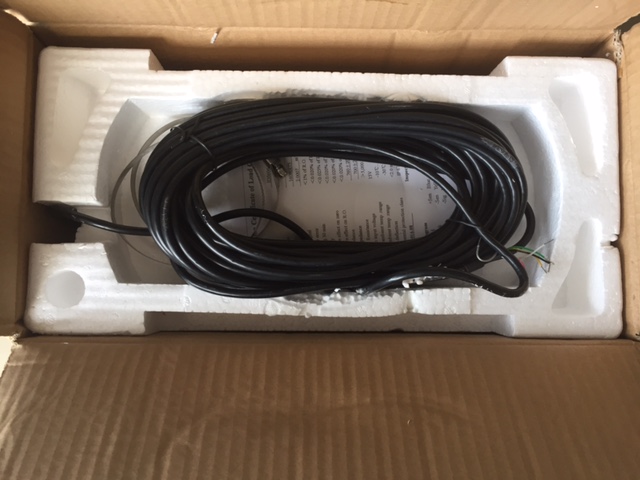

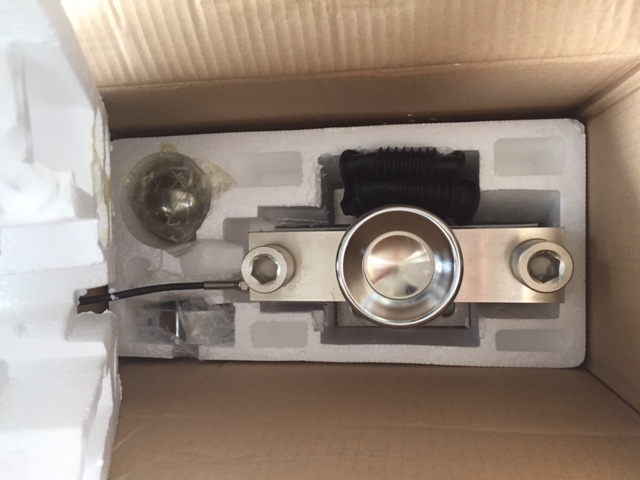

Packing
Standard export package: each unit has individual box and all boxes are packed in standard packages.
ราคาที่แจ้งไว้ไม่รวมค่าติดตั้ง หากลูกค้าต้องการให้ดัดแปลงหรือติดตั้งกับแท่นเดิม
ติดต่อได้ที่กิโลไทย 02-040-1497,08-6308-0095
