WEIGHT CONTROL XK3190-C8
รายละเอียดสินค้า WEIGHT CONTROL XK3190-C8
จอแสดงน้ำหนักควบคุม XK3190-C8
เหมาะกับงานชั่งควบคุมระบบแพล้นปูน ชั่งควบคุมระบบถังผสม/ถังบรรจุ ชั่งส่งข้อมูลเข้าPLC
Weighing indicator C8 adopts fast speed A/D conversion technology.

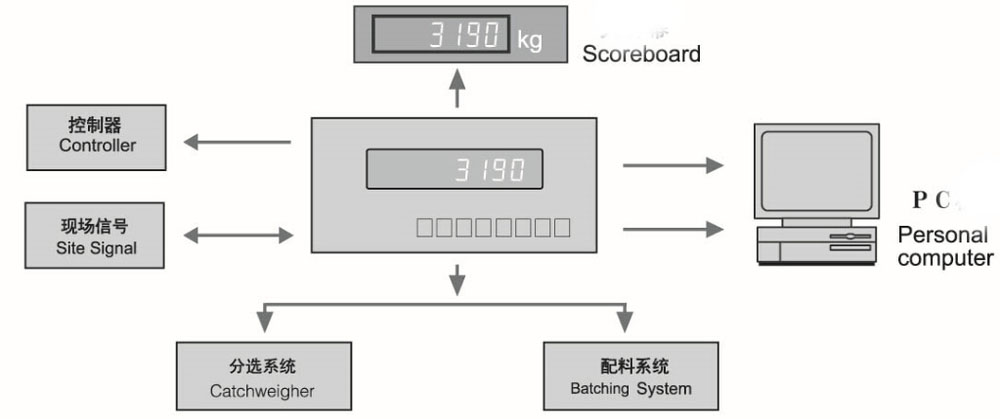

It is widely applied in electronic batching scale, electronic fix value scale and electronic catch weigher, and otherweighing control system.
Meanwhile, it has function of max. and min. limitation alarm and peak value preserving.
Standard Function
* 3 inputs, 3 outputs (relay) control
* High precision A/D conversion with readability 1/30000
* With 5 points nonlinearity amend
* In case of indicator exchange, re-calibrate is not necessary. Input parameter of former indicator will work
* Automatic gravimetric filling instruments, catch weigher, alarm for max. and min. limitation and peak value preserving functions
* Able to set fixed-value, pre-act value, Max-min limitation, and delay time freely based on different applications
* 1/2 materials available for plus/minus scale; external, self testing, and free max and min modes are available for catch weigher
* Standard RS-232/422/485 communication interface, baud rate and way of communication is optional
* Standard scoreboard interface serial sending signal by 20mA current loop (constant current)
* Precise simulate signal output with mode of 4-20mA/ 0-20mA/ 0-5V/ 0-10V optional, adjustable
* Accumulative weight and time is able to be stored, check, delete, and with date-protection when power cut off
* Able to connect with serial printer to print weighing record, accumulative amount or combined information, optional print unit: kg, tg and lb
* Zero tracking, range for zero (automatic and manual) could be set freely
* Strong anti-jamming and good reliability
* ESD protection performance: touch 6KV, air 8KV.
* Reset function
Specifications
|
Accuracy class |
III |
|
AD conversion method |
conversion technology |
|
AD conversion bit |
24bit |
|
Conversion speed |
80 times/s |
|
Input signal range |
-19mV~+19mV |
|
Input sensitivity |
≥1uV/e |
|
Nonlinearity |
≤0.01%F.S |
|
Full spam temperature |
≤8PPM/ ℃ |
|
Load cell excitation |
5VDC;350mA |
|
Numbers of load cell connection |
1~8 load cells 350Ω |
|
Load cell connection |
6 wire, auto compensation for long distance |
|
Display |
7 bits LED, height of bit 0.5 inch, 11 status lights |
|
Division |
1/2/5/10/20/50/100 optional |
|
Clock |
able to show real time and date |
|
Button |
5 soft buttons |
|
Scoreboard interface |
adopts serial sending signal by 20mA current loop |
|
Communication interface |
optional serial communication RS232C/RS422/RS485 and baud rate 600-9600 |
|
Print interface |
share the serial interface, able to connect with serial printer |
|
Replay output |
capacity of AC: 220V, 0.5A |
|
External input |
on/off touch point (on/off controls in effect), able to connect controller such as proximity switch |
|
Power supply |
AC 110~230V, 50/60Hz 1A |
|
Temperature and humidity in application |
0~40℃;≤90%RH |
|
Temperature for store and transportation |
-20~50℃ |
|
Weight |
about 0.7g |
