กิโลดิจิตอล

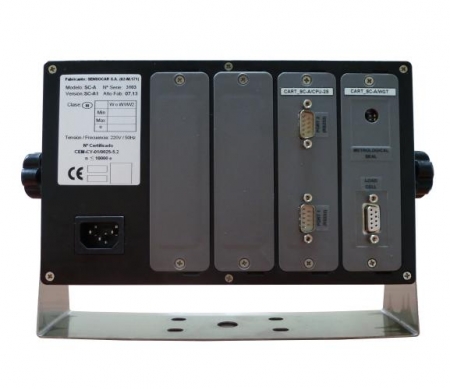

Truck scale indicator

฿0.00
จอแสดงน้ำหนักสำหรับรถบรรทุก แบรนด์จากประเทศสเปน มาตรฐานOIML,CE Mark สินค้าคุณภาพพร้อมรับประกัน2ปี
  • หมวดหมู่ : จอน้ำหนักรถบรรทุก
  • รหัสสินค้า : 000193

รายละเอียดสินค้า Truck scale indicator

Truck scale
SC-A1 CRT I LED

Characteristics:

• Approved according to OIML R76 and EN 45501
• Electromagnetic Susceptibility 10V/m
• No. of measurement divisions 10,000e (Class III)
• Min. voltage by verification scale 0.6uV/e
• Max. signal voltage for dead load of 10mV
• Voltage of the measuring range from 5mV to 15mV
• Load Cell power supply at 5V
• Minimum impedance of load cell: 40 Ohms

· 8 load cells of 350 Ohms
· 17 load cells of 700 Ohms

• Temperature range from -10ºC to +40ºC
• 32-bit microprocessor
• 24-bit A/D Converter (1,000,000 Internal div.)
• Weight processing via adaptive filters
• Real time clock
• Isolated RS232 Communications Port

Electrical Power Supply Characteristics:

• Wide range of supply voltages: 80 – 264 VAC
• Very low consumption: 1.2W (typ) – 0.9W (LCD version)
• ON/OFF key

มาตรฐานสากลที่ได้รับ
CE Test Certificate CEM-CY-01/0025-5.2
OIML Certificate R76/2006-ES1-16.01

สอบถามรายละเอียดและติดตั้ง โทร.02-0401497,02-1011732
