5t Zemic loadcell
ชุดโหลดเซลราคาประหยัด มาตรฐานOIML,NTEP พร้อมงานรับประกัน
รายละเอียดสินค้า 5t Zemic loadcell
H8C-C3-2.5t,H8C-C3-5.0t
Chear beam loadcell โหลดเซลล์เชอบีมแบรนด์ ZEMIC
โหลดเซลล์พิกัด 2.5ตัน,5ตัน สำหรับติดตั้งแท่นชั่งขนาดใหญ่,ถังชั่ง..

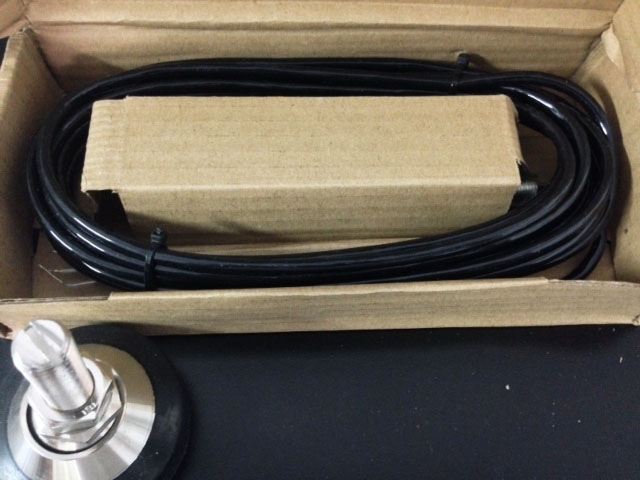

โครงสร้างอัลลอยด์สตีล พร้อมขาตั้งโหลดเซลล์ สายยาว3เมตร
OIML zemic loadcell H8C Load Cell for floor scale,hopper scale.
◆H8C load cells are available in the capacities 2.5t,5t
◆Alloy steel,sealed by adhesive inside,oil-proof,waterproof
and anti-corrosion, suitable for all kinds of environment.
◆Single shear beam, easy for installation,suitable for
electronic platform scales,hopper scales and other electronic
weighing devices.
◆Safe and anti-explosive product,can be used in
atrocious environment and hazardous areas.
◆High accuracy.
◆Alloy steel construction.
◆Low profile.
◆With OIML approval.
◆With NTEP approval.
-------------------------------------------------------------------------------------------------------------------
Specifications
|
Capacity |
ton |
0. 5/1/1.5/2/2.5/3/5/10 |
|||||
|
Klb |
1/1.5/2/2.5/3/4/5/5KSE/7.5/10/15/20 |
||||||
|
Accuracy class |
C2 |
C3 |
C4 |
A5M |
B10M |
||
|
Approval |
OIML R60 C3 |
III 5000 |
III L 10000 |
||||
|
multiford |
multiford |
||||||
|
Maximum number of |
n max |
2000 |
3000 |
4000 |
5000 |
10000 |
|
|
verification intervals |
|||||||
|
Minimum load cell |
v min |
Emax/5000 |
Emax |
Emax |
Emax |
Emax |
|
|
verification interval |
/10000 |
/14000 |
/15000 |
/10000 |
|||
|
Combined error |
(%FS) |
≤±0.030 |
≤±0.020 |
≤±0.018 |
≤±0.026 |
≤±0.050 |
|
|
Creep |
%FS/30min |
≤±0.024 |
≤±0.016 |
≤±0.012 |
≤±0.017 |
≤±0.040 |
|
|
Temperature effect |
(%FS/10℃) |
≤±0.017 |
≤±0.011 |
≤±0.009 |
≤±0.013 |
≤±0.040 |
|
|
on sensitivity |
|||||||
|
Temperature effect |
(%FS/10℃) |
≤±0.023 |
≤±0.015 |
≤±0.010 |
≤±0.014 |
≤±0.020 |
|
|
on zero |
|||||||
|
Output sensitivity |
(mv/v) |
2.0 ±0.002 |
3.0±0.003 |
||||
|
Input resistance |
(Ω) |
350±3.5 |
|||||
|
Output resistance |
(Ω) |
350±3.5 |
|||||
|
Insulation resistance |
(MΩ) |
≥ 5000(100VDC) |
|||||
|
Zero balance |
(%FS) |
1 |
|||||
|
Temperature, |
(℃) |
-10~+40 |
|||||
|
compensated |
|||||||
|
Temperature,allowed |
(℃) |
-35~+70 |
|||||
|
Excitation, |
(V) |
5~12(DC) |
|||||
|
Recommended |
|||||||
|
Excitation,Max |
(V) |
18(DC) |
|||||
|
Safe overload |
(%FS) |
150 |
|||||
|
Ultimate overload |
(%FS) |
300 |
|||||
